Hydraulic Kidney Loop Panel

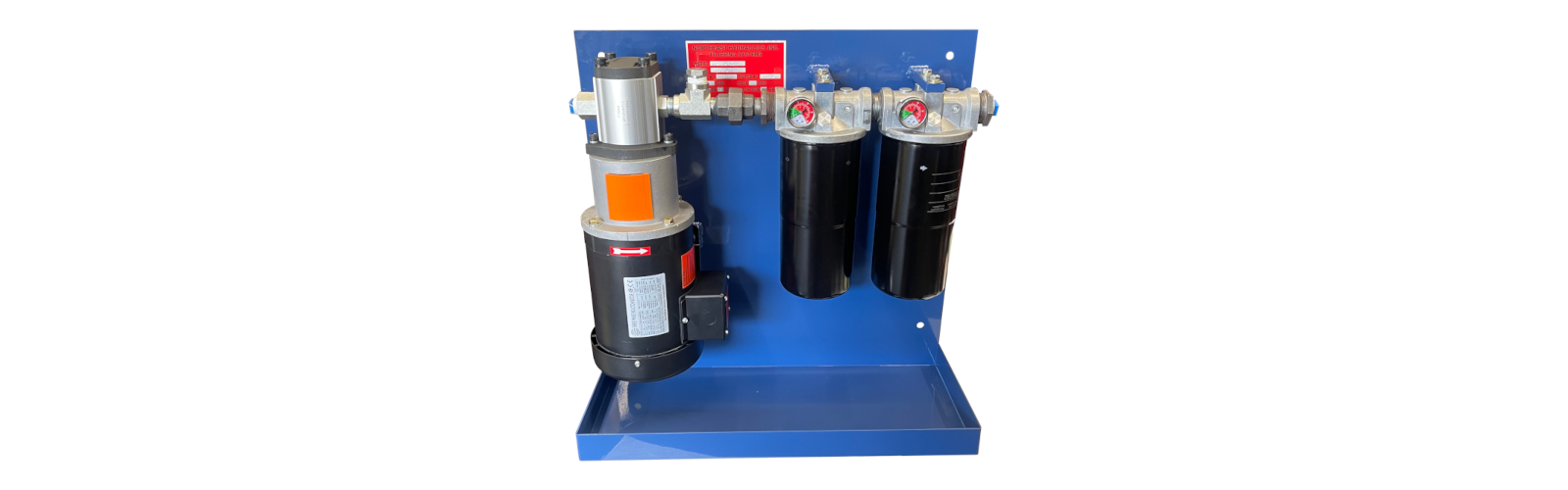

We built this hydraulic kidney loop panel for a customer’s food processing machine's hydraulic system. This kidney loop panel was mounted offline of the machines hydraulic system and draws hydraulic fluid from the reservoir via a 12 gallon per minute pump driven by a 3/4 horsepower-3 phase electric motor and directs it through two hydraulic filter elements. The first filter is a 23 micron/beta 1000 rated element, and the second filter is a 10 micron/beta 1000 element. Both filter elements can be monitored easily by visual inspection of the color-coded gauges. We utilized Donaldson filter elements in this build for their availability nationwide. We also included a port between the discharge of the pump and inlet of the first filter element to allocate for a test port if needed in the future.
