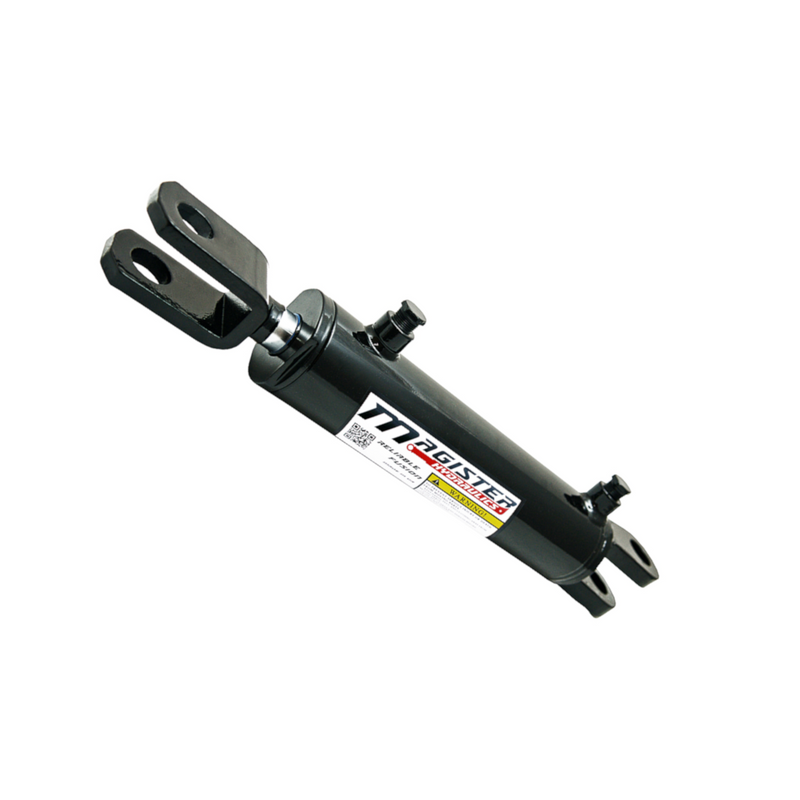

2.5" Bore X 14" Stroke AG Clevis Hydraulic Cylinder

SKU MHWBC2.5X14
Original price $178.60 - Original price $178.60
Original price
$178.60
$178.60 - $178.60
Current price $178.60
Availability:
in stock, ready to be shipped
Request a quote

Free Shipping - Ships from Manufacturer

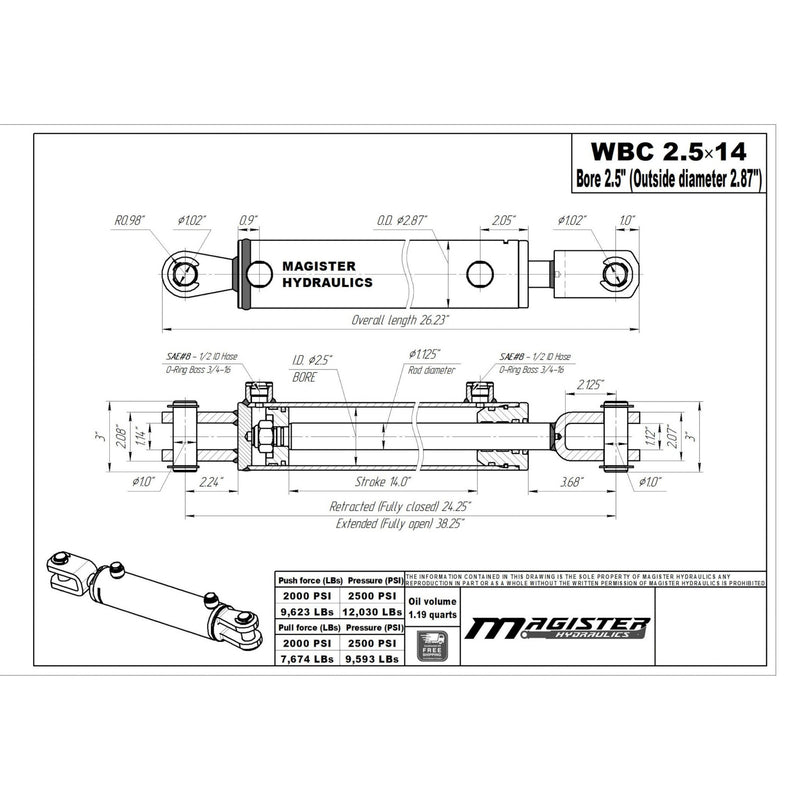

FEATURES

  • Bore: 2.5 in
  • Rod Diameter: 1.125 in
  • Stroke: 14 in
  • Outer Diameter: 2.37 in
  • Port Size: SAE -08
  • Extended: 38.25 in
  • Retracted: 24.25 in
  • Pin Diameter: 1 in
  • Overall Length: 26.25 in
  • Rod Type: Chrome Plated
  • Pressure: 2500 PSI
  • Column Load: 12,270 LBS
  • Design: Welded
  • Oil Volume: 0.76 QTS
