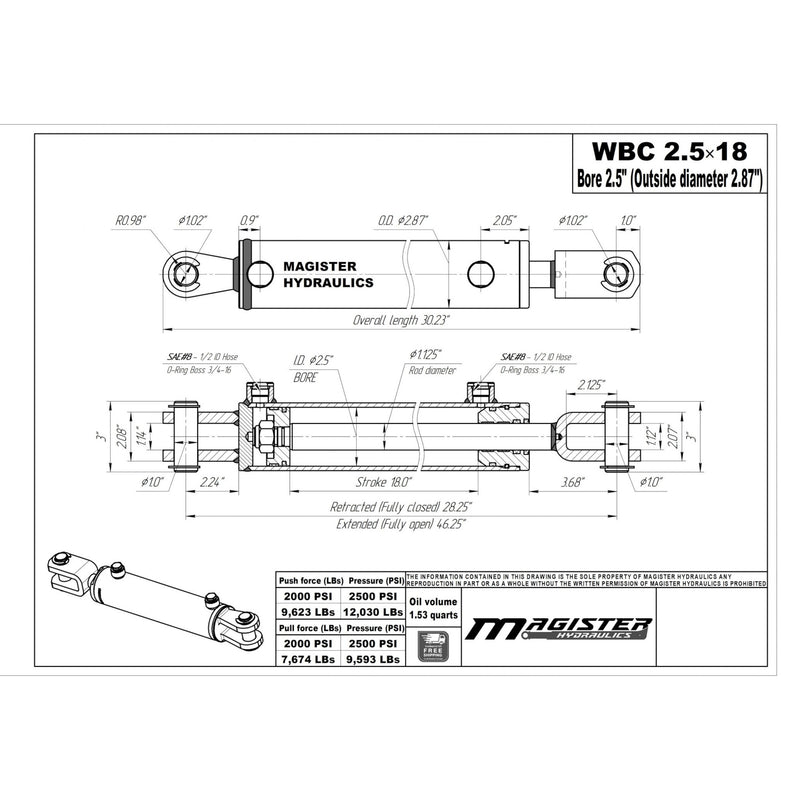

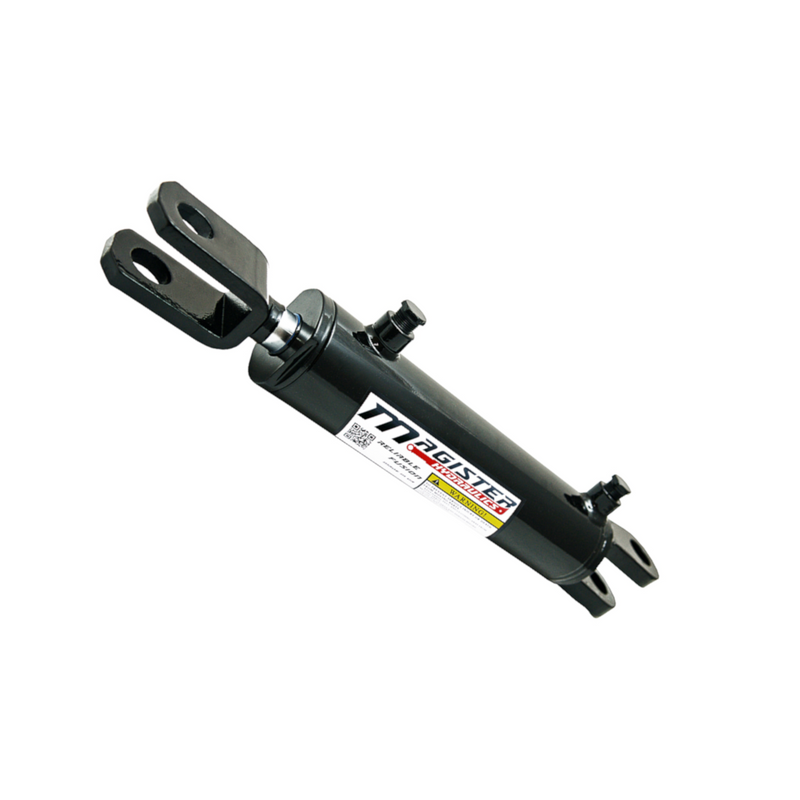

2.5" Bore X 18" Stroke AG Clevis Hydraulic Cylinder

2.5" Bore X 18" Stroke AG Clevis Hydraulic Cylinder

SKU MHWBC2.5X18
$193.80 - $193.80
$193.80
$193.80 - $193.80
$193.80
Availability:
in stock, ready to be shipped
by Magister Hydraulics
Request a quote

Free Shipping - Ships from Manufacturer

FEATURES

  • Bore: 2.5 in
  • Rod Diameter: 1.125 in
  • Stroke: 18 in
  • Outer Diameter: 2.37 in
  • Port Size: SAE -08
  • Extended: 46.25 in
  • Retracted: 28.25 in
  • Pin Diameter: 1 in
  • Overall Length: 30.25 in
  • Rod Type: Chrome Plated
  • Pressure: 2500 PSI
  • Column Load: 8,370 LBS
  • Design: Welded
  • Oil Volume: 1.53 QTS
