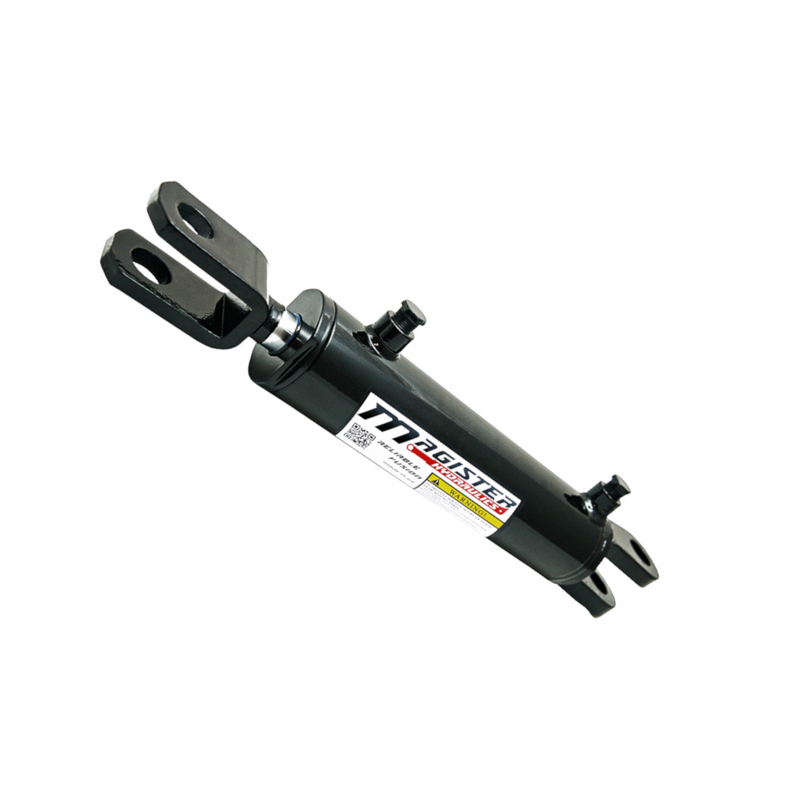

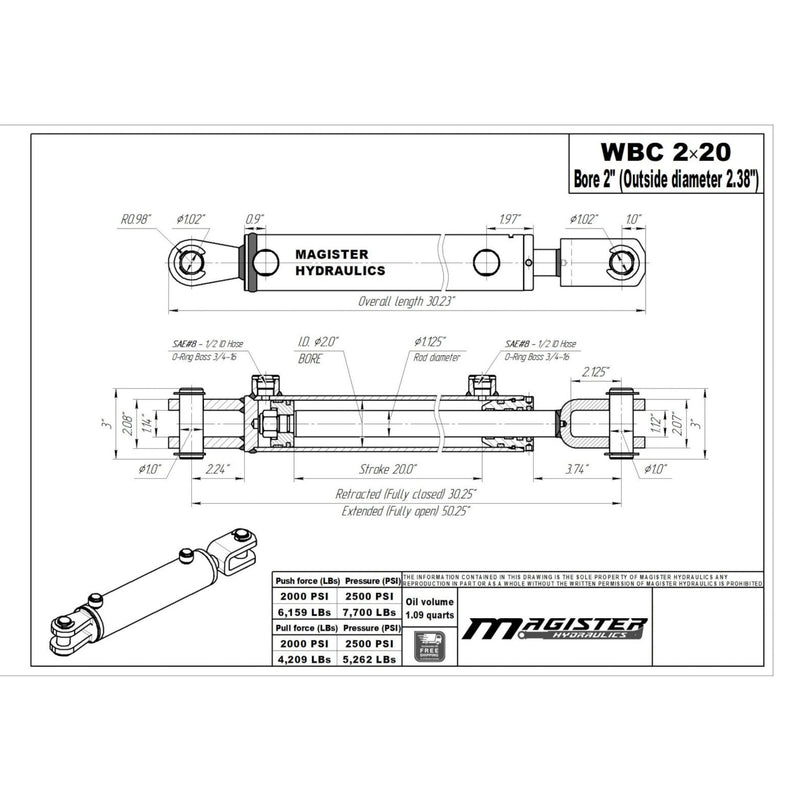

2" Bore X 20" Stroke AG Clevis Hydraulic Cylinder

2" Bore X 20" Stroke AG Clevis Hydraulic Cylinder

SKU MHWBC2X20
$183.35 - $183.35
$183.35
$183.35 - $183.35
$183.35
Availability:
in stock, ready to be shipped
by Magister Hydraulics
Request a quote

Free Shipping - Ships from Manufacturer

FEATURES

  • Bore: 2 in
  • Rod Diameter: 1.125 in
  • Stroke: 20 in
  • Outer Diameter: 2.37 in
  • Port Size: SAE -08
  • Extended: 50.25 in
  • Retracted: 30.25 in
  • Pin Diameter: 1 in
  • Overall Length: 32.25 in
  • Rod Type: Chrome Plated
  • Pressure: 2500 PSI
  • Column Load: 7,850 LBS
  • Design: Welded
  • Oil Volume: 1.09 QTS
