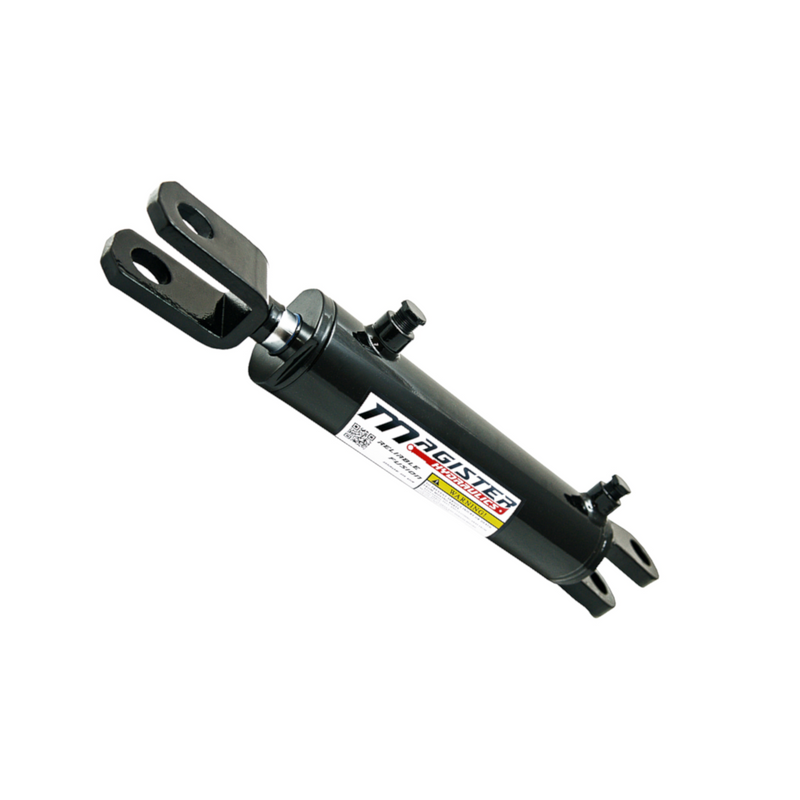

2" Bore X 24" Stroke AG Clevis Hydraulic Cylinder

2" Bore X 24" Stroke AG Clevis Hydraulic Cylinder

SKU MHWBC2X24
$189.05 - $189.05
$189.05
$189.05 - $189.05
$189.05
Availability:
in stock, ready to be shipped
by Magister Hydraulics
Request a quote

Free Shipping - Ships from Manufacturer

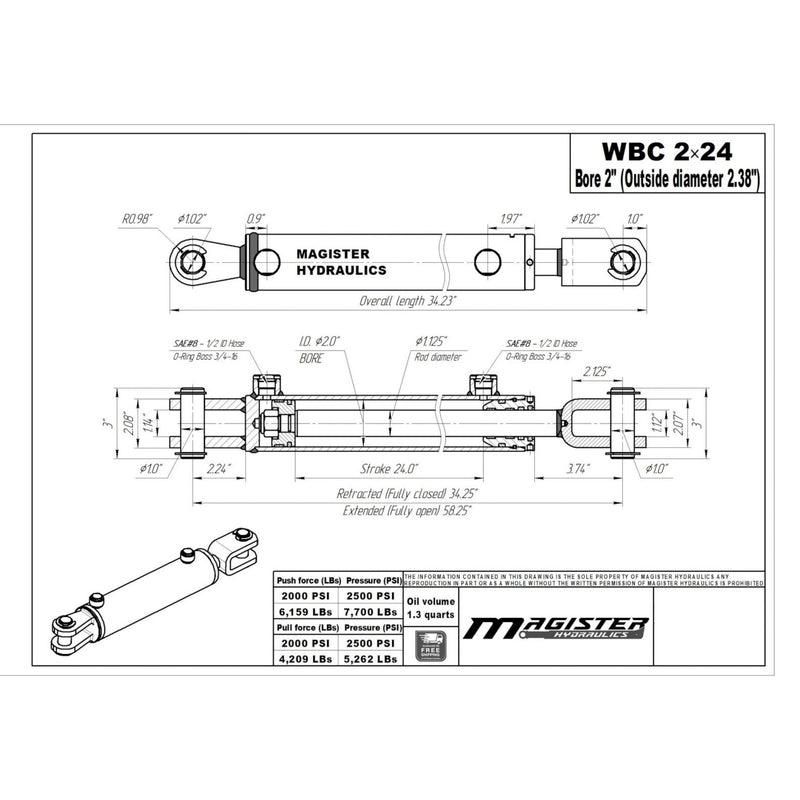

FEATURES

  • Bore: 2 in
  • Rod Diameter: 1.125 in
  • Stroke: 24 in
  • Outer Diameter: 2.37 in
  • Port Size: SAE -08
  • Extended: 58.25 in
  • Retracted: 34.25 in
  • Pin Diameter: 1 in
  • Overall Length: 36.25 in
  • Rod Type: Chrome Plated
  • Pressure: 2500 PSI
  • Column Load: 7,850 LBS
  • Design: Welded
  • Oil Volume: 1.3 QTS
