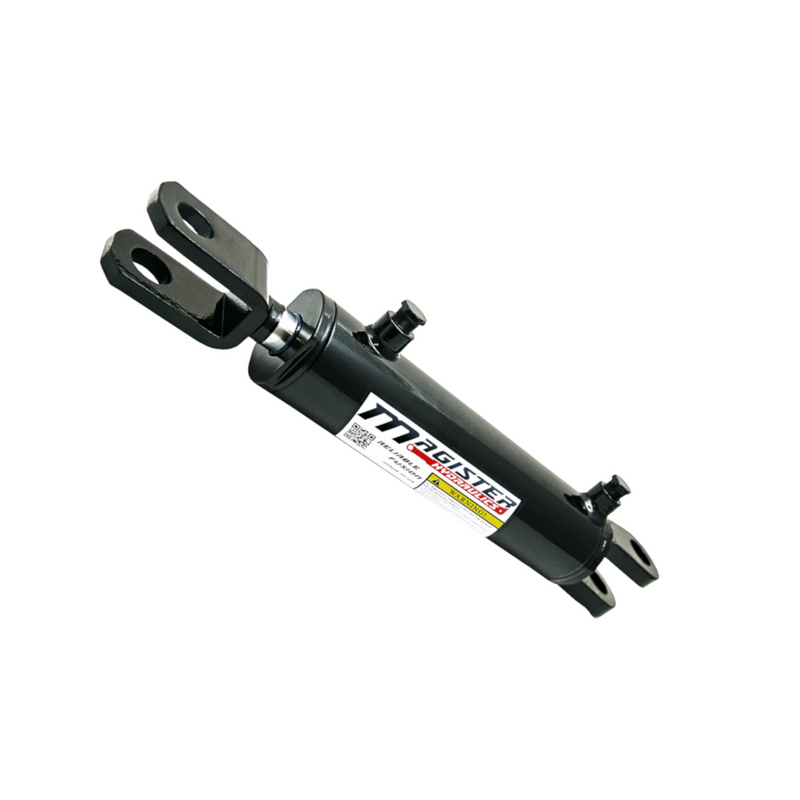

2" Bore X 8" Stroke AG Clevis Hydraulic Cylinder

2" Bore X 8" Stroke AG Clevis Hydraulic Cylinder

SKU MHWBC2X8
$147.25 - $147.25
$147.25
$147.25 - $147.25
$147.25
Availability:
in stock, ready to be shipped
by Magister Hydraulics
Request a quote

Free Shipping - Ships from Manufacturer

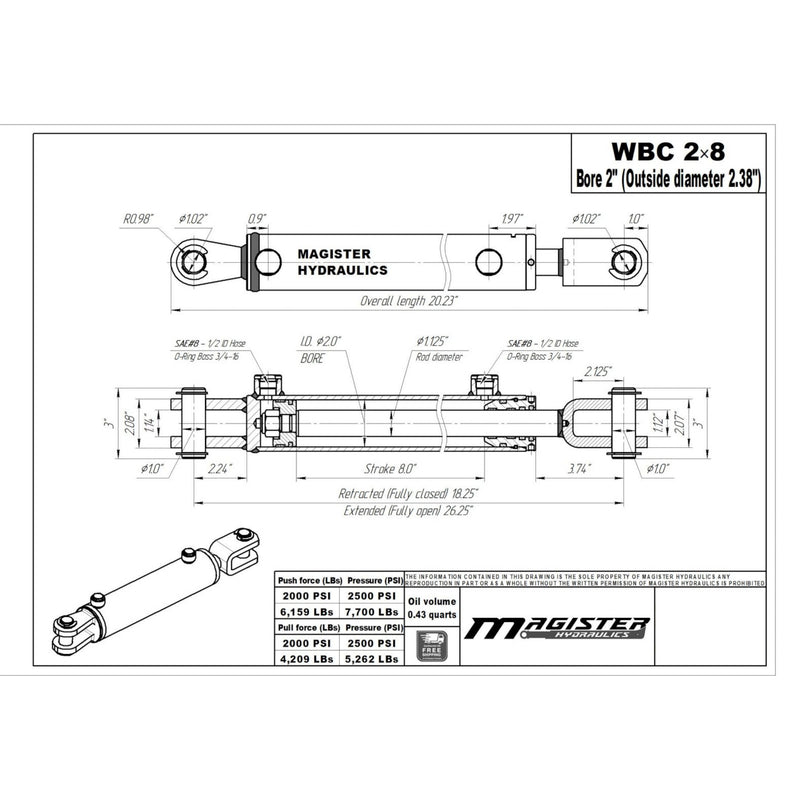

FEATURES

  • Bore: 2 in
  • Rod Diameter: 1.125 in
  • Stroke: 8 in
  • Outer Diameter: 2.37 in
  • Port Size: SAE -08
  • Extended: 26.25 in
  • Retracted: 18.25 in
  • Pin Diameter: 1 in
  • Overall Length: 20.25 in
  • Rod Type: Chrome Plated
  • Pressure: 2500 PSI
  • Column Load: 7,850 LBS
  • Design: Welded
  • Oil Volume: 0.43 QTS
