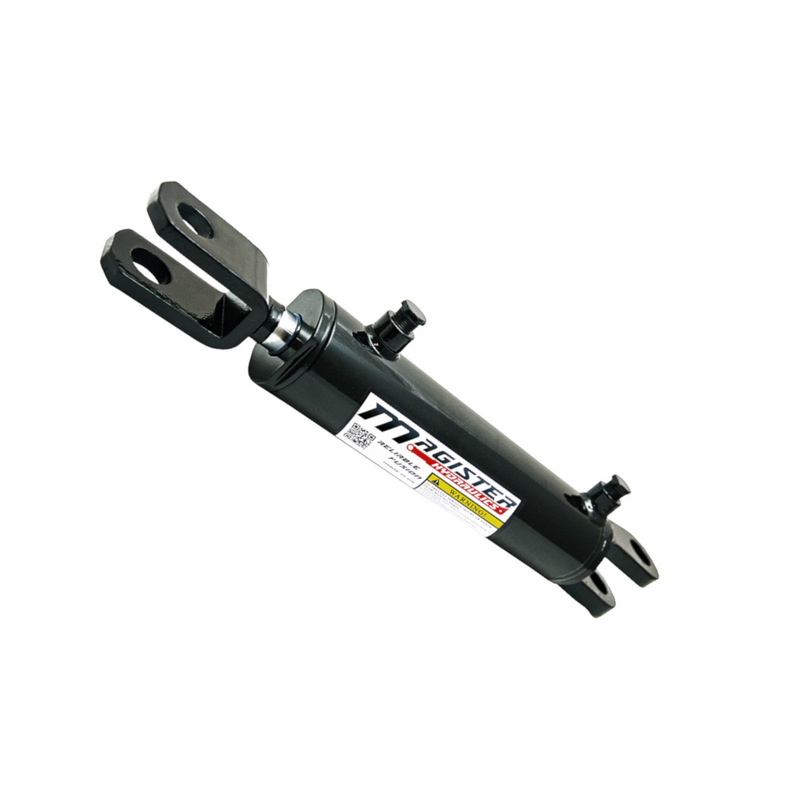

3" Bore X 10" Stroke AG Clevis Hydraulic Cylinder

SKU MHWBC3X10
Original price $197.60 - Original price $197.60
Original price
$197.60
$197.60 - $197.60
Current price $197.60
Availability:
in stock, ready to be shipped
Request a quote

Free Shipping - Ships from Manufacturer

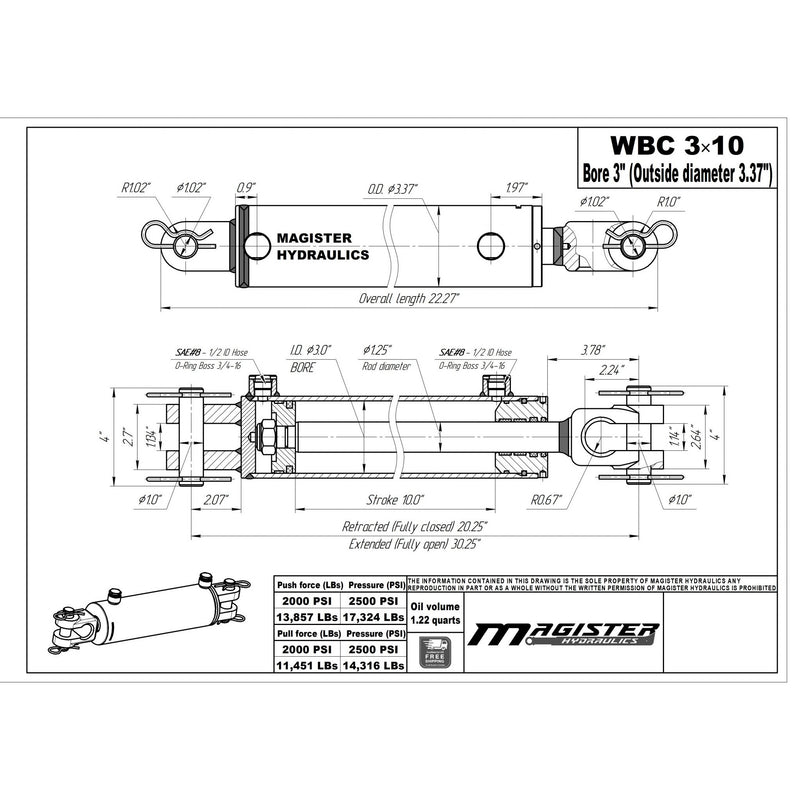

FEATURES

  • Bore: 3 in
  • Rod Diameter: 1.25 in
  • Stroke: 10 in
  • Outer Diameter: 3.37 in
  • Port Size: SAE -08
  • Extended: 30.25 in
  • Retracted: 20.25 in
  • Pin Diameter: 1 in
  • Overall Length: 22.25 in
  • Rod Type: Chrome Plated
  • Pressure: 2500 PSI
  • Column Load: 17,670 LBS
  • Design: Welded
  • Oil Volume: 1.22 QTS
