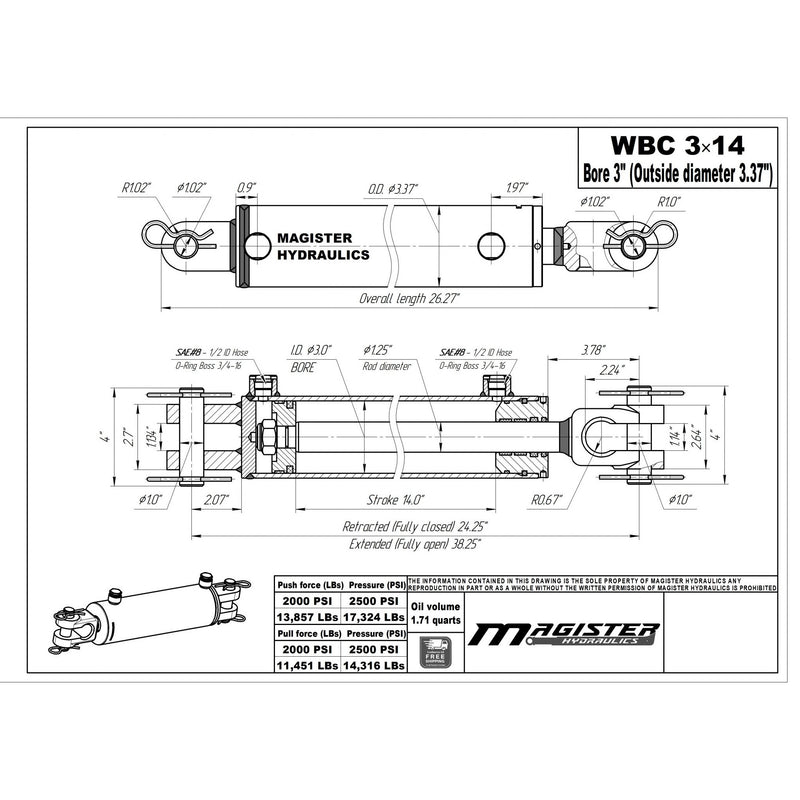

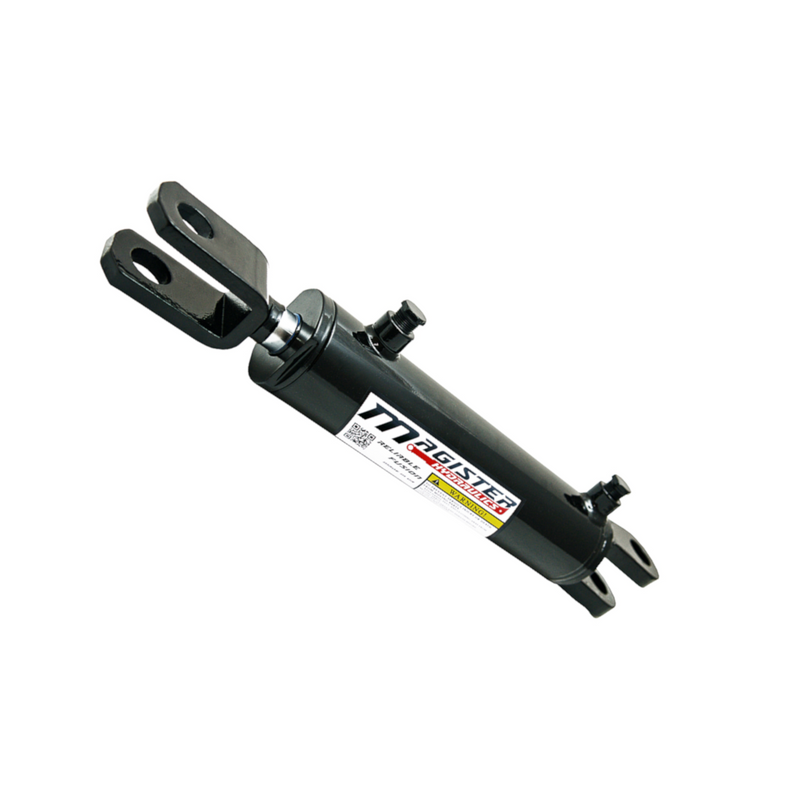

3" Bore X 14" Stroke AG Clevis Hydraulic Cylinder

3" Bore X 14" Stroke AG Clevis Hydraulic Cylinder

SKU MHWBC3X14
$210.90 - $210.90
$210.90
$210.90 - $210.90
$210.90
Availability:
in stock, ready to be shipped
by Magister Hydraulics
Request a quote

Free Shipping - Ships from Manufacturer

FEATURES

  • Bore: 3 in
  • Rod Diameter: 1.25 in
  • Stroke: 14 in
  • Outer Diameter: 3.37 in
  • Port Size: SAE -08
  • Extended: 38.25 in
  • Retracted: 24.25 in
  • Pin Diameter: 1 in
  • Overall Length: 26.25 in
  • Rod Type: Chrome Plated
  • Pressure: 2500 PSI
  • Column Load: 17,670 LBS
  • Design: Welded
  • Oil Volume: 1.71 QTS
