D4-02-3C4-A1 D03 Solenoid Directional Control Valve (110 VAC)
SKU D4-02-3C4-A1
Original price
$205.14
-
Original price
$205.14
Original price
$205.14
$205.14
-
$205.14
Current price
$205.14
Availability:
in stock, ready to be shipped

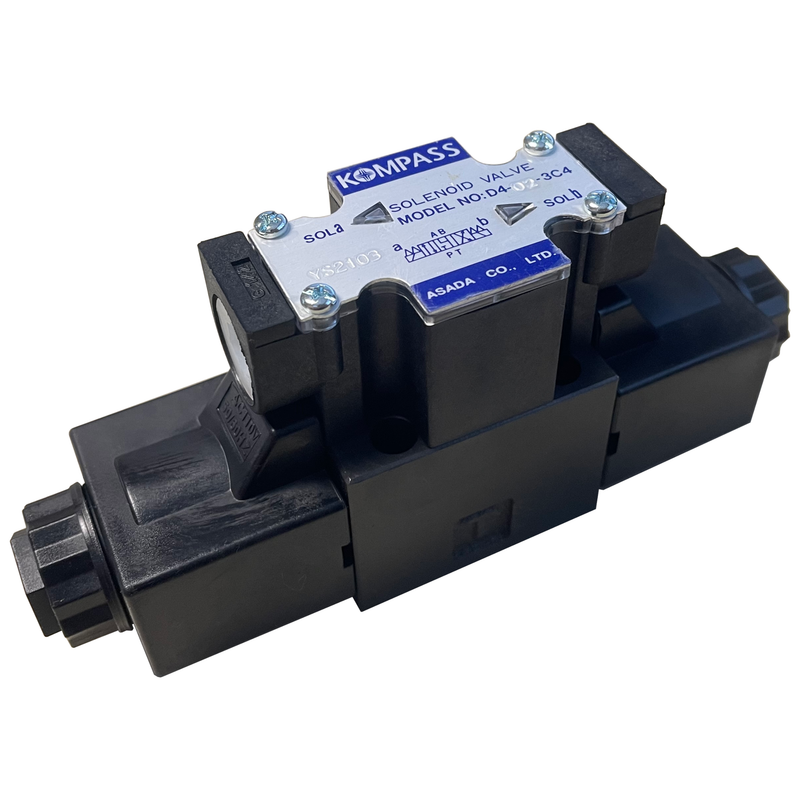

DO3 3 position solenoid operated directional control valve for directing fluid flow in hydraulic circuit. Featuring terminal box type electrical connection with indicator lights. Long life and quiet operation. P port blocked, A and B port to T port in neutral position.
Features
- Valve Size: D03
- Valve Type: Solenoid Control Valve
- Max Pressure: 4568 PSI
-
Max Flow: 15.85 GPM
- Rated Flow: 10.56 GPM
- Spool Type: 4 Way/3 Position

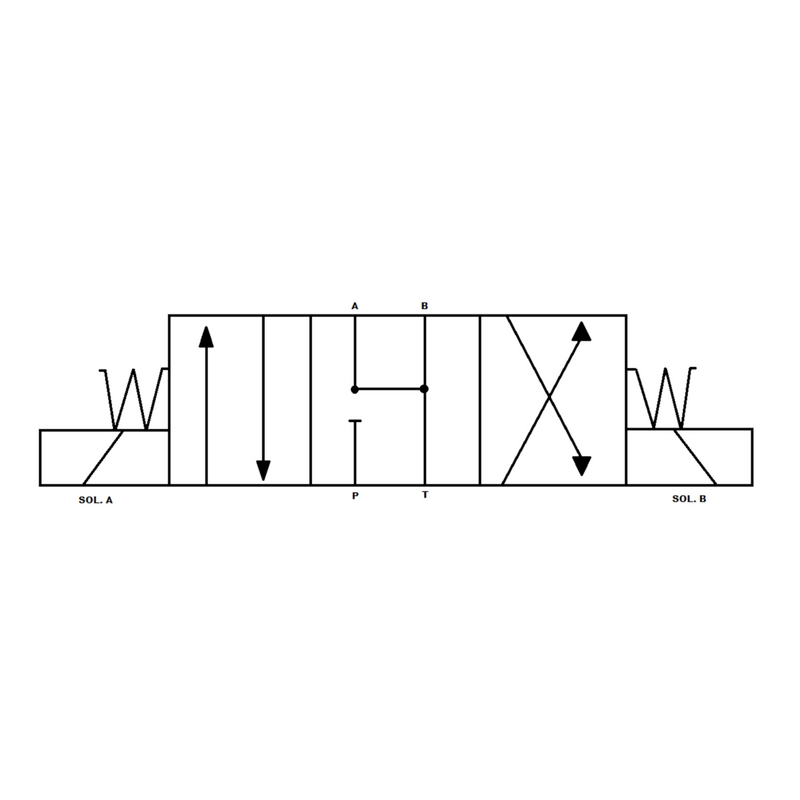

- Neutral Position: P Closed/A,B to T
- Spool Action: Spring Centered
- Mounting Type: Manifold
- Electric Connection Type: Terminal Box
- Coil Voltage: 110 VAC
