D4-02-3C60-D2 D03 Solenoid Directional Control Valve (24 VDC)
SKU KOD4023C60D24
Original price
$216.30
-
Original price
$216.30
Original price
$216.30
$216.30
-
$216.30
Current price
$216.30
Availability:
in stock, ready to be shipped
DO3 3 position solenoid operated directional control valve for directing fluid flow in hydraulic circuit. Featuring terminal box type electrical connection with indicator lights. Long life and quiet operation. P port to T port, A and B port blocked in neutral position.
Features
- Valve Size: D03
- Valve Type: Solenoid Control Valve
- Max Pressure: 4568 PSI
-
Max Flow: 10.56 GPM
- Rated Flow: 7.93 GPM
- Spool Type: 4 Way/3 Position

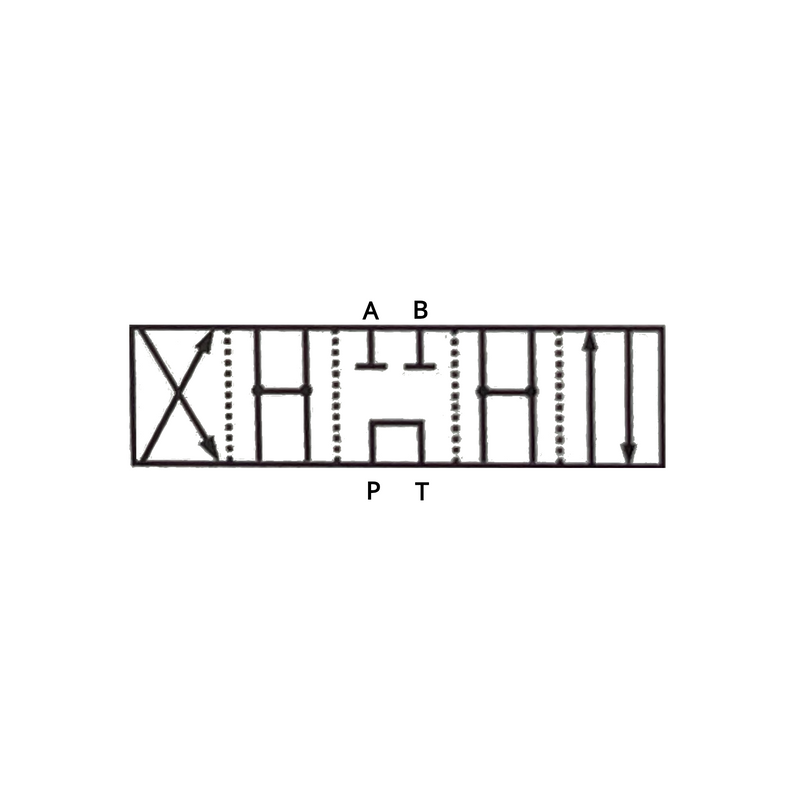

- Neutral Position: P to T/A, B Blocked
- Spool Action: Spring Centered
- Mounting Type: Manifold
- Electric Connection Type: Terminal Box
- Coil Voltage: 24 VDC
