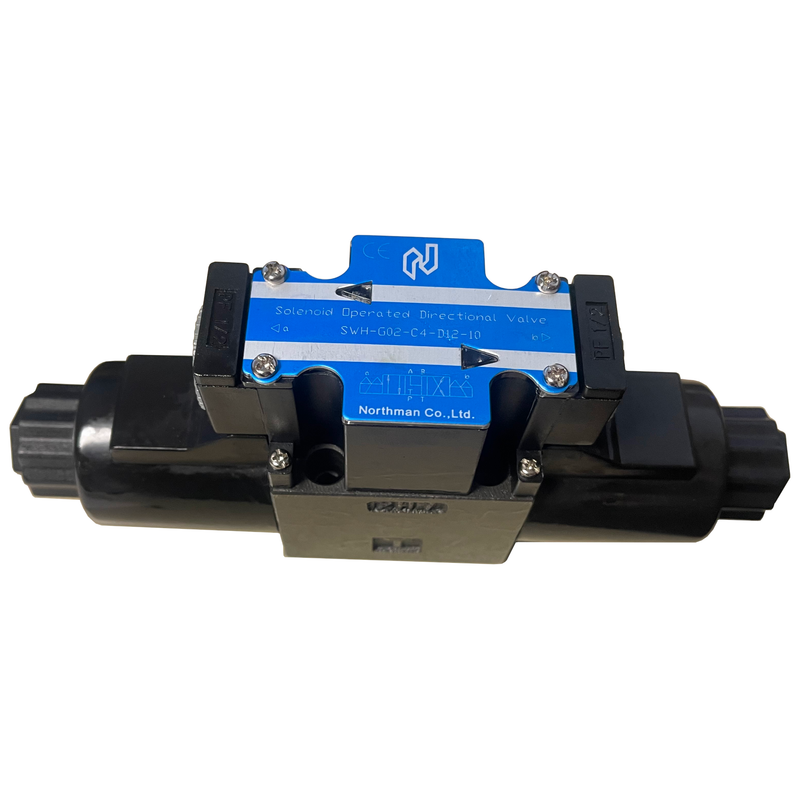

SWH-G02-C4-D12-10 D03 Solenoid Directional Control Valve (12 VDC)
SKU NM3C4D1210
Original price
$213.33
-
Original price
$213.33
Original price
$213.33
$213.33
-
$213.33
Current price
$213.33
Availability:
in stock, ready to be shipped
DO3 3 position solenoid operated directional control valve for directing fluid flow in hydraulic circuit. Featuring terminal box type electrical connection with indicator lights. Long life and quiet operation. All ports blocked in neutral position.
Features
- Valve Size: D03
- Valve Type: Solenoid Control Valve
- Max Pressure: 4500 PSI
- Max Flow: 16.8 GPM

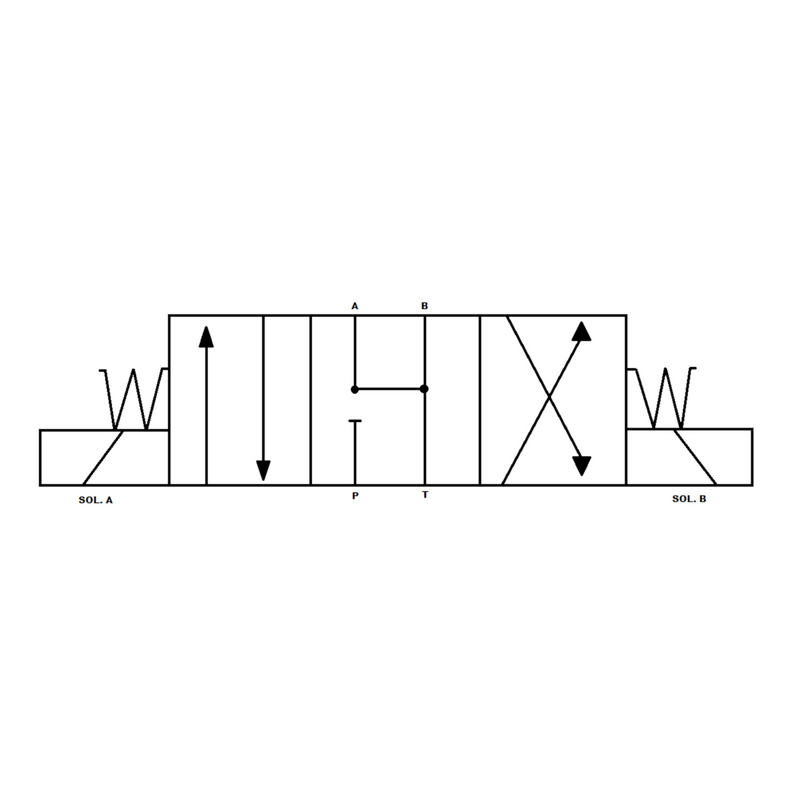

- Spool Type: 4 Way/3 Position
- Neutral Position: All Ports Closed
- Spool Action: Spring Centered
- Mounting Type: Manifold
- Electric Connection Type: Terminal Box
- Coil Voltage: 12 VDC
