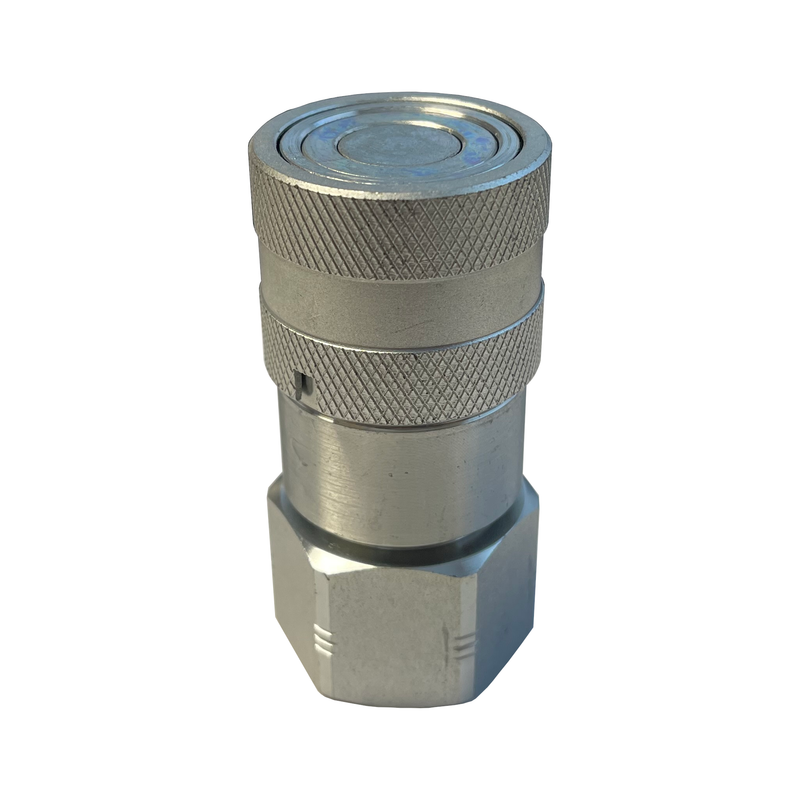

3/8" Body x 3/8" NPT Female Flat Face Coupler (ISO 16028)

The Quick Coupling Technologies QC-FF series couplings are ideal for the quick change of hydraulic tools in construction, railway, maintenance and mining industries and are commonly found on excavators and skid steer loaders.

QC-FF Series conforms to the ISO16028 Standard

SPECIFICATIONS

• Body Size: 3/8"
• Thread Size: 3/8" Female NPT
• Rated Pressure: 4350 PSI
• Rated Flow: 6 GPM
• Temperature Rating: -22°F to 230°F

FEATURES

• Flush face design to avoid fluid loss and air inclusion

• Two stage valve for protection of sealing components during connection/disconnection of couplers

• New valve design resists damage from high impulse applications

INTERCHANGABILITY

• PARKER FF/FE/ FEM Series
• STUCCHI A-PREMIER Series
• Aeroquip FD89 Series
• SAFEWAY FF Series

Product Data Sheet
