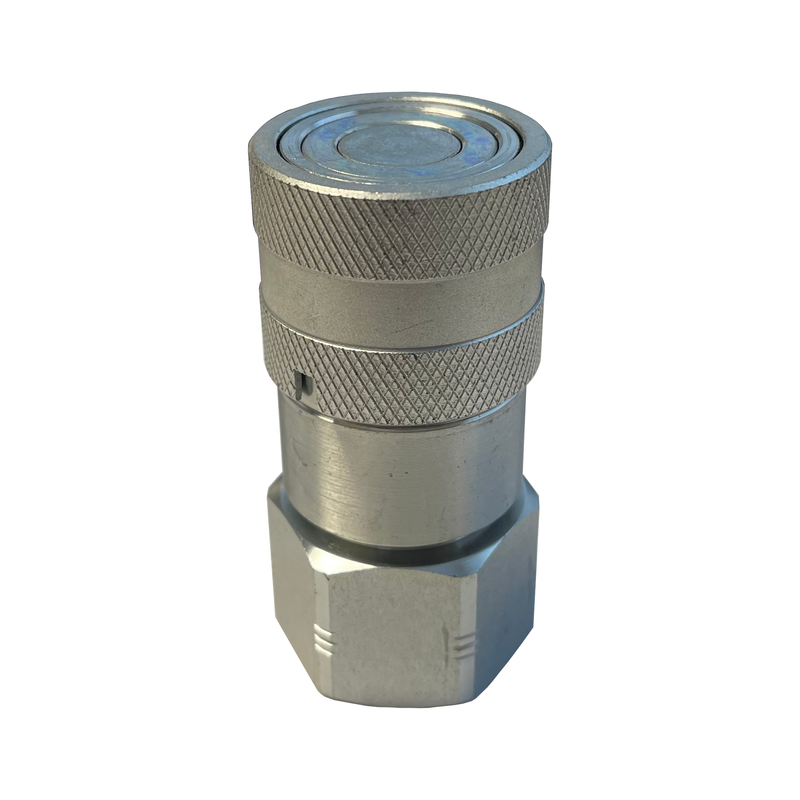

5/8" Body x 5/8" SAE O-Ring Boss Female Flat Face Coupler (ISO 16028)

5/8" Body x 5/8" SAE O-Ring Boss Female Flat Face Coupler (ISO 16028)

SKU QCFF10-F10S
$112.72 - $112.72
$112.72
$112.72 - $112.72
$112.72
Availability:
in stock, ready to be shipped
by Quick Coupling Technologies
Request a quote

The Quick Coupling Technologies QC-FF series couplings are ideal for the quick change of hydraulic tools in construction, railway, maintenance and mining industries and are commonly found on excavators and skid steer loaders.

QC-FF Series conforms to the ISO16028 Standard


SPECIFICATIONS

  • Body Size: 5/8"
  • Thread Size: 5/8" Female SAE O-Ring Boss
  • Rated Pressure: 3625 PSI
  • Rated Flow: 28 GPM
  • Temperature Rating: -22°F to 230°F

FEATURES

  • Flush face design to avoid fluid loss and air inclusion

  • Two stage valve for protection of sealing components during connection/disconnection of couplers

  • New valve design resists damage from high impulse applications

    INTERCHANGABILITY

    • PARKER FF/FE/ FEM Series
    • STUCCHI A-PREMIER Series
    • Aeroquip FD89 Series
    • SAFEWAY FF Series



      Product Data Sheet
