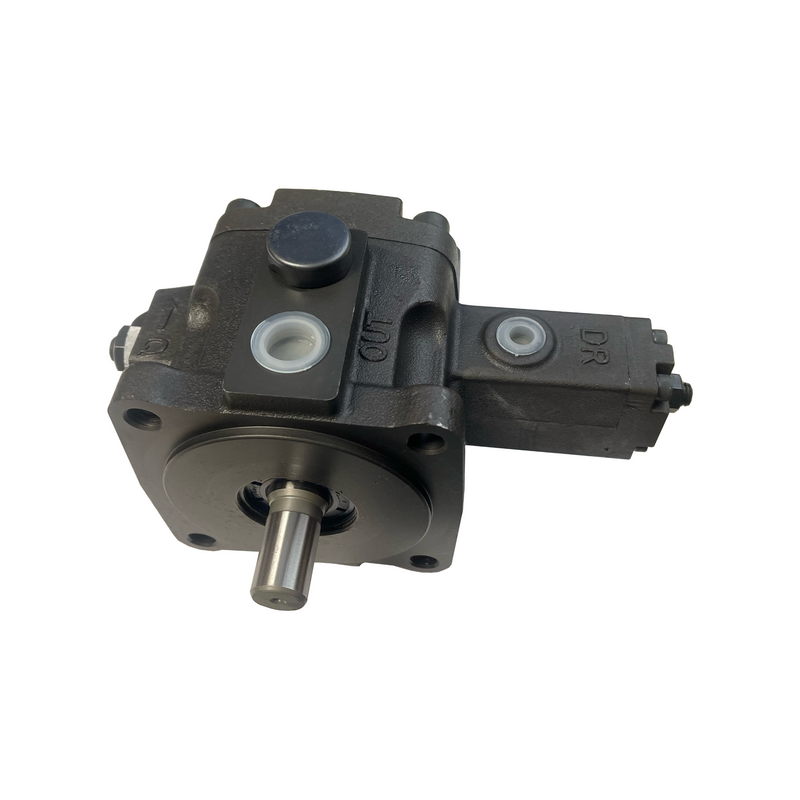

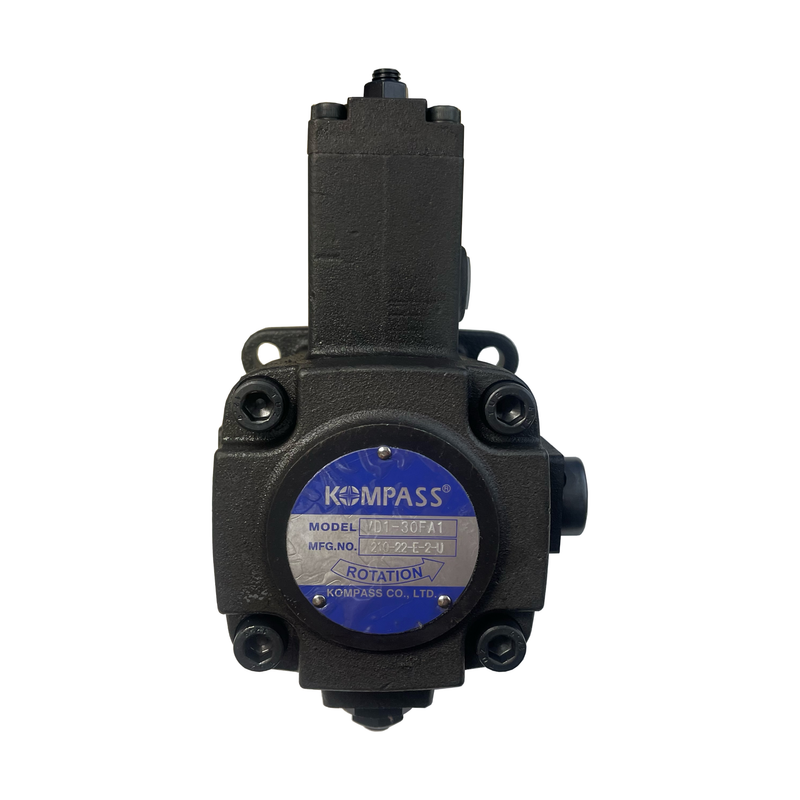

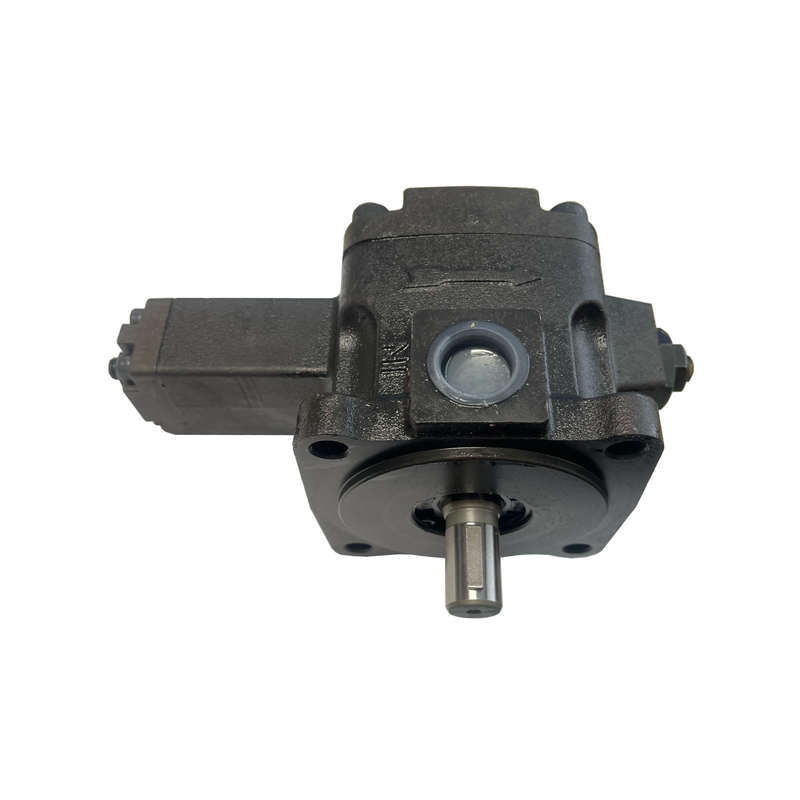

VD1 series is a variable displacement vane pump. Low noise and minimal vibration derived from high efficiency design. Easy pressure adjustment which results in high stability and fast acting times.

Features

• Displacement: 1.02 in.³ / rev.
• Pump Type: Variable Displacement Vane
• Pressure Adjustment Range: 115-285 PSI
• Speed:
  Minimum - 800 RPM
  Max-    1800 RPM
• Flow: 7.93 GPM @ 1800 RPM Unloaded

• Rotation: Clockwise
• Shaft: 3/4" dia. w/ 5/32" key
• Ports:
   In -    1/2" BSPT
   Out - 3/8" BSPT
• Drain - 1/4" BSPT
• Mounting Flange: SAE "A" 2-Bolt
