Electric Motor Mount - SAE "A" 2-Bolt, 56C or 143-145TC Frame (E49-A2)
SKU HME49-A2
Original price
$55.00
-
Original price
$55.00
Original price
$55.00
$55.00
-
$55.00
Current price
$55.00
Availability:
Low stock
by Hydra-Mount
This electric motor mount is machined to exact dimensions for optimal performance, offering enhanced protection against wear, stress, and misalignment in couplings/shaft assemblies.
Features
Motor Frame Size: 56 C or 143-145 TC
SAE Pump Flange: SAE "A" 2-Bolt
Max Coupling Diameter - 3.00"

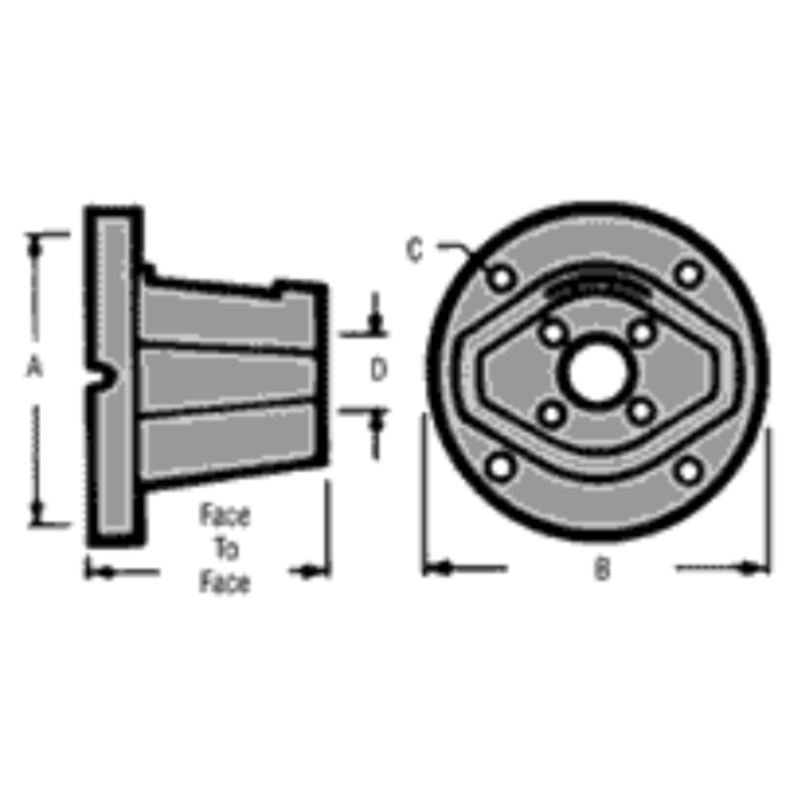

Dimensions
Face to Face Dimension: 3.50"(A) - 4.50"
(B) - 6.625"
(C) Motor Bolt Circle Dimension - 5.875"
(D) Pump Pilot Dimension - 3.25"
Pump Bolt Circle - 4.188"
Access Cover Number - AC 49
