Electric Motor Mount - SAE "A" 2-Bolt, 56C or 143-145TC Frame (VM14-42-2A)

Electric Motor Mount - SAE "A" 2-Bolt, 56C or 143-145TC Frame (VM14-42-2A)

SKU HSVM14-42-2A
$89.50 - $89.50
$89.50
$89.50 - $89.50
$89.50
Availability:
Low stock
by Hesco of Virginia
Request a quote

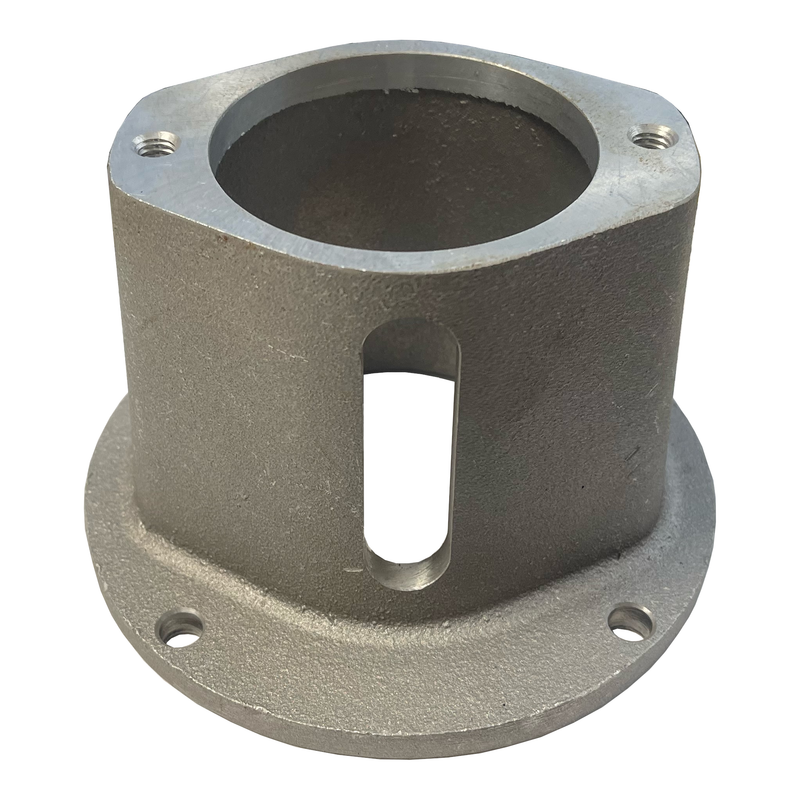

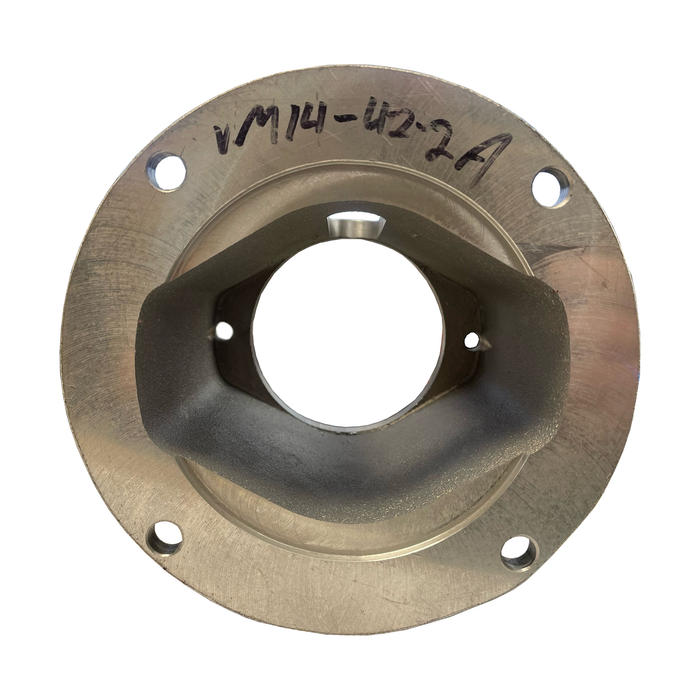

This electric motor mount is machined to exact dimensions for optimal performance, offering enhanced protection against wear, stress, and misalignment in couplings/shaft assemblies.

Features

Motor Frame Size: 56 C or 143-145 TC
SAE Pump Flange: SAE "A" 2-Bolt
Max Coupling Diameter - 3.00"

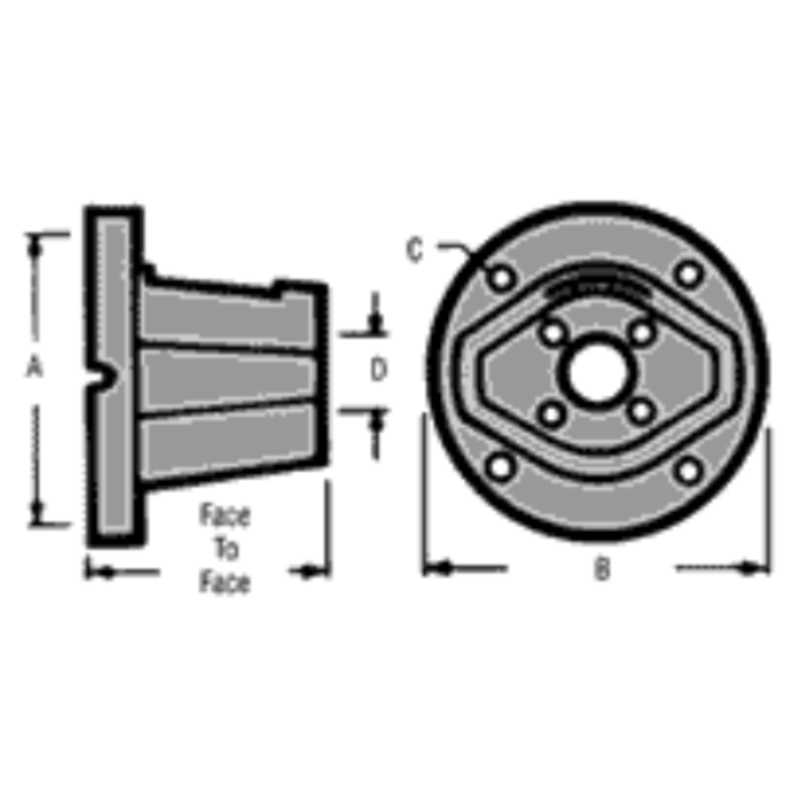

Dimensions

Face to Face Dimension: 4.25"
(A) - 4.502"
(B) - 6.625"
(C) Motor Bolt Circle Dimension - 5.875"
(D) Pump Pilot Dimension - 3.25"
Pump Bolt Circle - 4.188"
