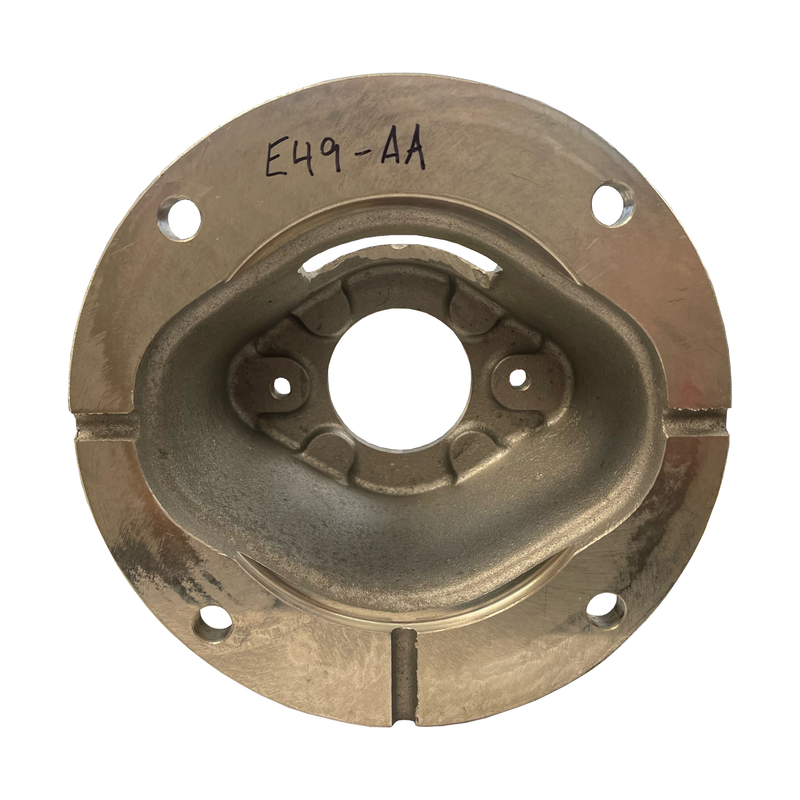

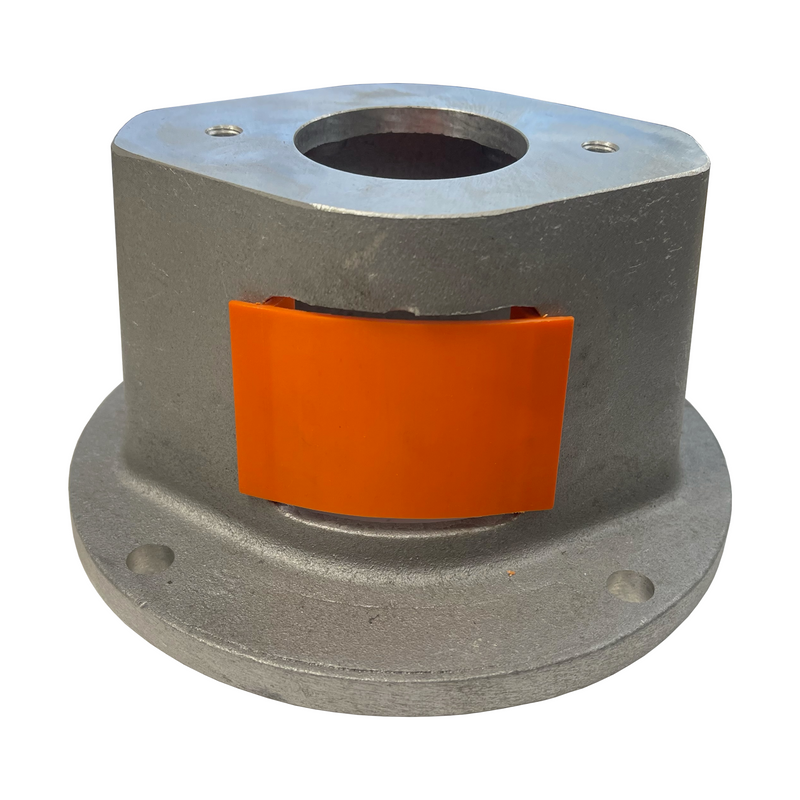

Electric Motor Mount - SAE "AA" 2-Bolt, 56C or 143-145TC Frame (E49-AA)

SKU HME49-AA2
Original price $55.00 - Original price $55.00
Original price
$55.00
$55.00 - $55.00
Current price $55.00
Availability:
In stock
Request a quote

This electric motor mount is machined to exact dimensions for optimal performance, offering enhanced protection against wear, stress, and misalignment in couplings/shaft assemblies.

Features

Motor Frame Size: 56 C or 143-145 TC
SAE Pump Flange: SAE "AA" 2-Bolt
Max Coupling Diameter - 3.00"

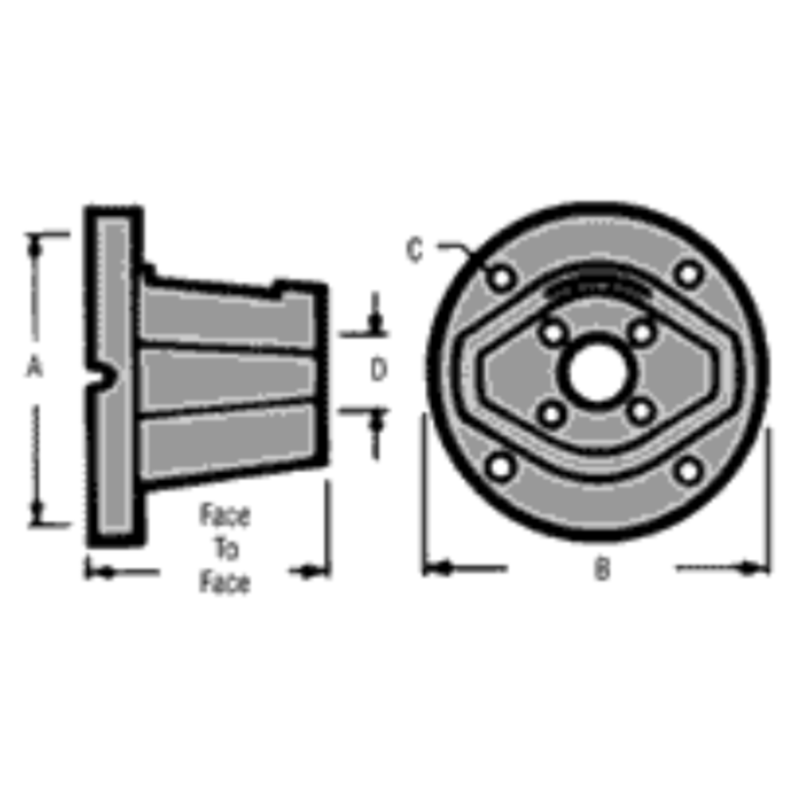

Dimensions

Face to Face Dimension: 3.50"
(A) - 4.50"
(B) - 6.625"
(C) Motor Bolt Circle Dimension - 5.875"
(D) Pump Pilot Dimension - 2.00"
Pump Bolt Circle - 3.25"
Access Cover Number - AC 49
