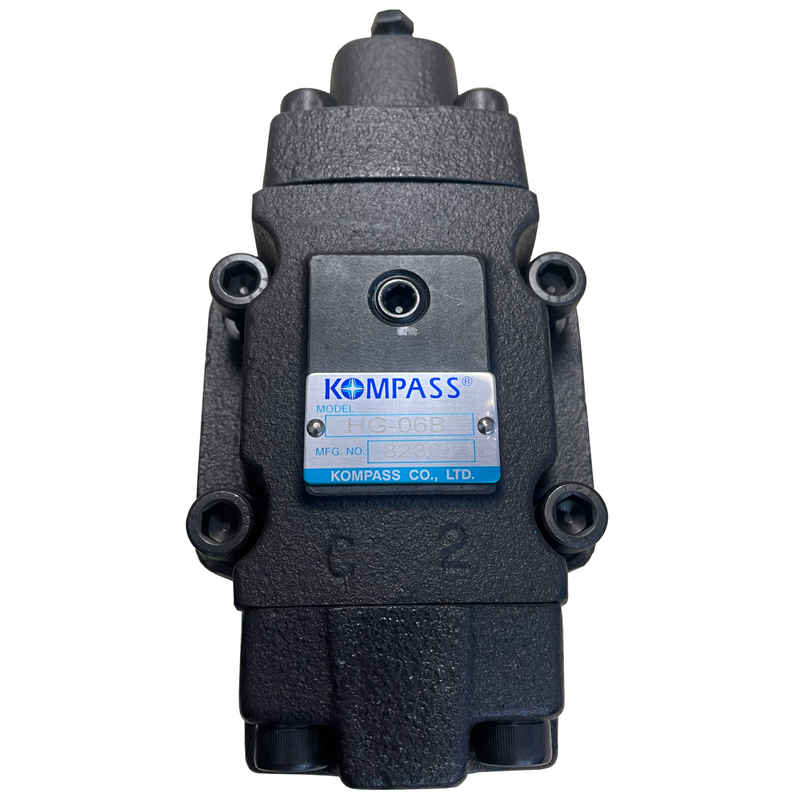

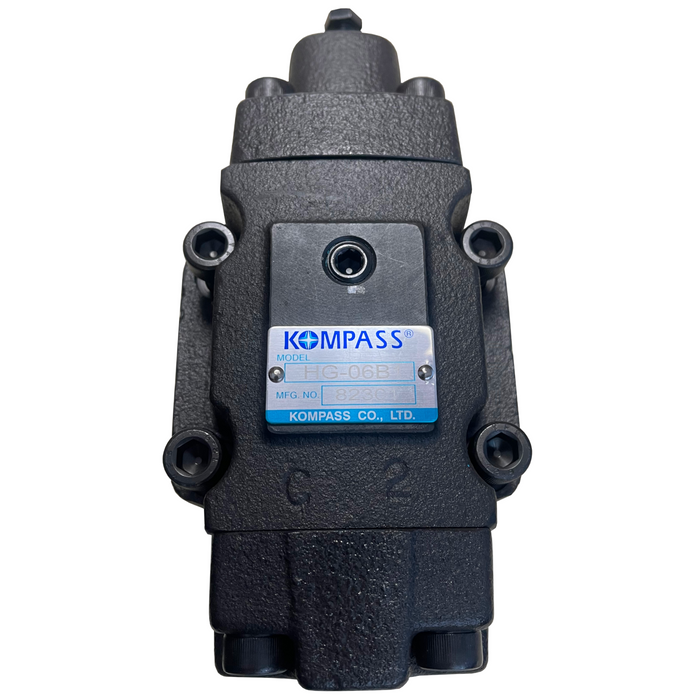

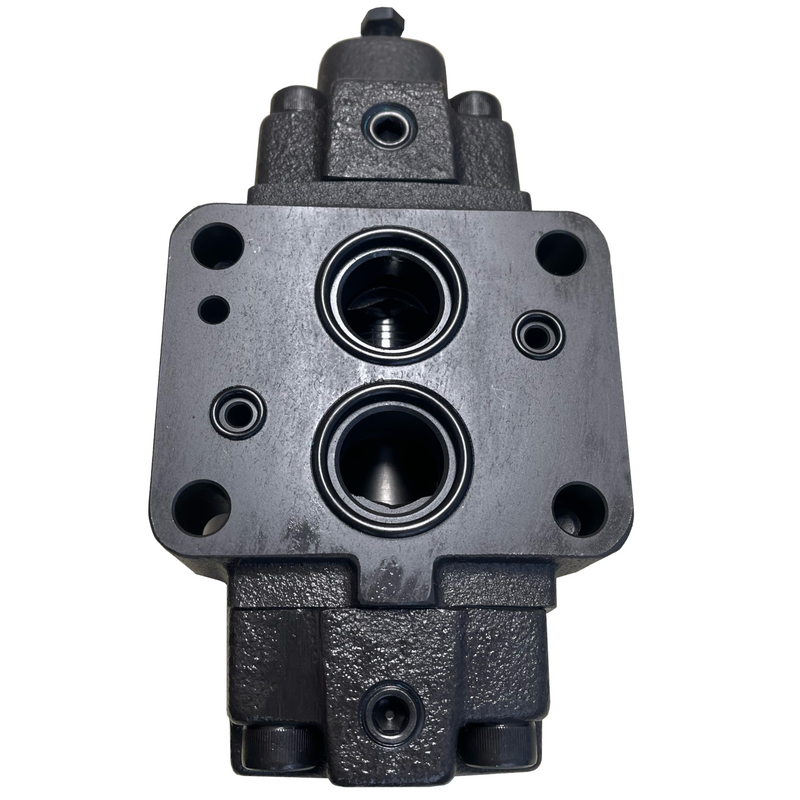

HG-06B1 Low Pressure Relief Valve
SKU KOHG-06B1
Original price
$392.54
-
Original price
$392.54
Original price
$392.54
$392.54
-
$392.54
Current price
$392.54
Availability:
Low stock

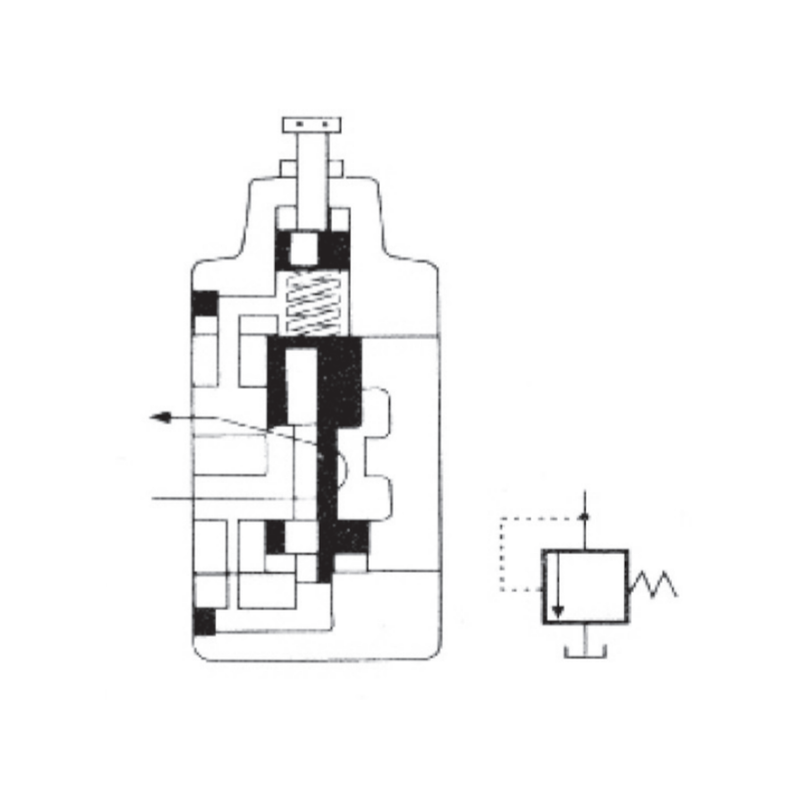

Kompass Hydraulics HG series low pressure relief valve used to control pressure in hydraulic circuits. Pressure can be set between 500-1000 PSI. When pressure reaches set value fluid is directed from P port back to T port.
Features
- Valve Size: 06
- Valve Type: Relief Valve
- Pressure Regulated Port: P Port
- Max Pressure: 3555 PSI
- Adjustable Pressure Range: 500-1000 PSI
- Max Flow: 33 GPM
- Mounting Type: Sub-Plate
- Adjustment Control: Hex head bolt with locking nut
