Kompass 110V AC D03 Valve Coil (D5CL02A156)
SKU KOD5CL02A156
Original price
$63.27
-
Original price
$63.27
Original price
$63.27
$63.27
-
$63.27
Current price
$63.27
Availability:
in stock, ready to be shipped

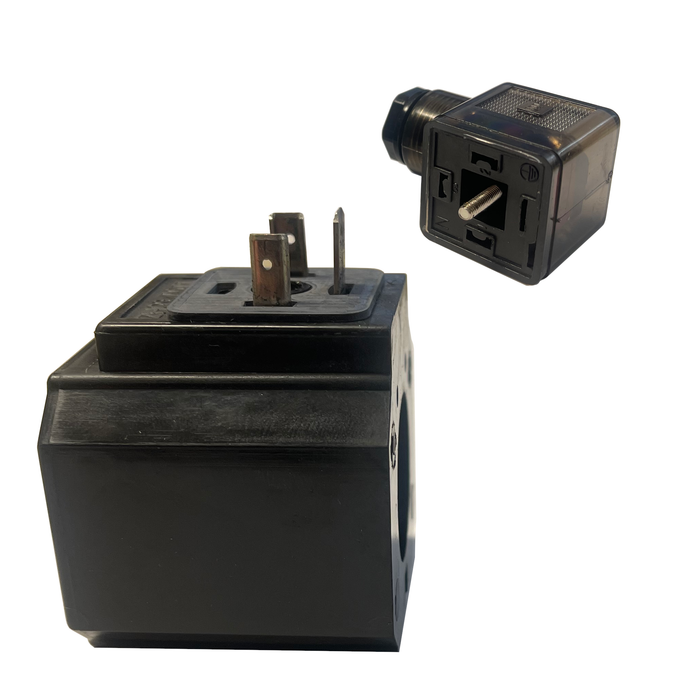

The D5CL02A156 is a replacement coil for Kompass Hydraulic's D03 solenoid directional control valves. Only compatible with Kompass AC DIN type plug-in connector.

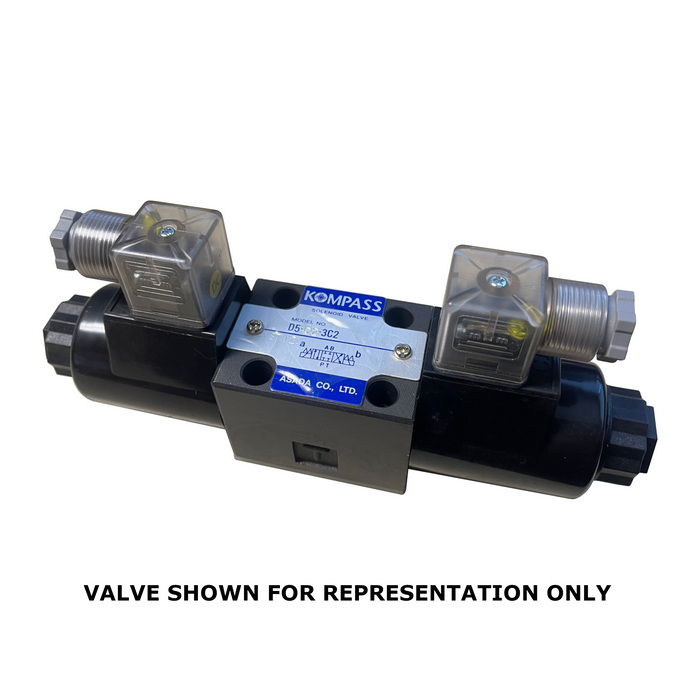

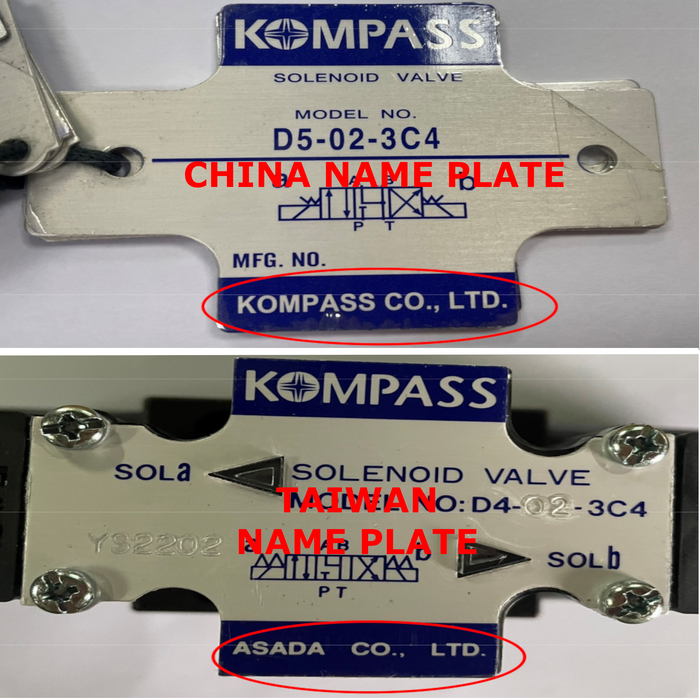

COILS WILL ONLY WORK WITH TAIWAN BRAND KOMPASS VALVES. PLEASE SEE IMAGE TO DETERMINE YOUR VALVE BEFORE ORDERING.
Features
- Valve Size: D03 (NG6)
- Voltage: 110VAC
- Hz: 50/60
- Service Range: 50(Hz) - 90-110 / 60(Hz) - 90-126
- In-Rush Amps: 50(Hz) @ 90-110V - 2.268 / 60(Hz) @ 90-115V - 1.638 / 60(Hz) @ 99-126V - 1.962
- Holding Amps: 50(Hz) @ 90-110V - .504 / 60(Hz) @ 90-115V - .364 / 60(Hz) @ 99-126V - .434
