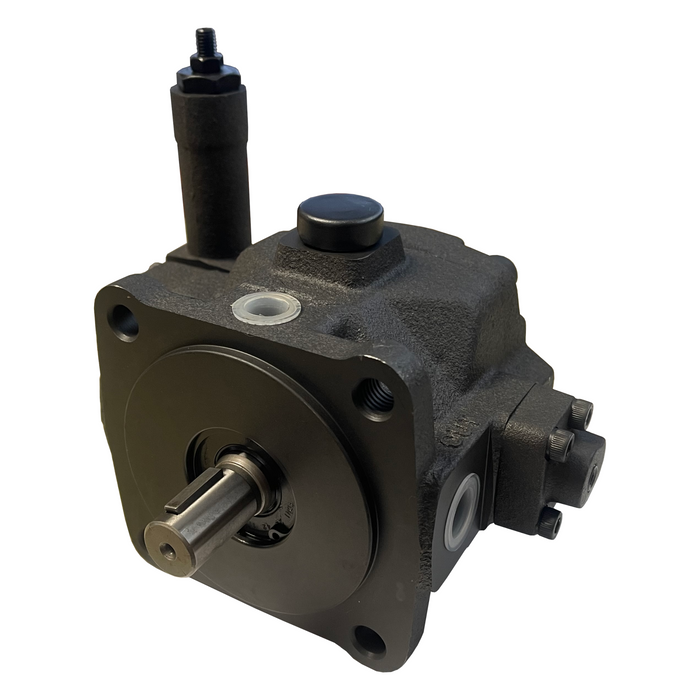

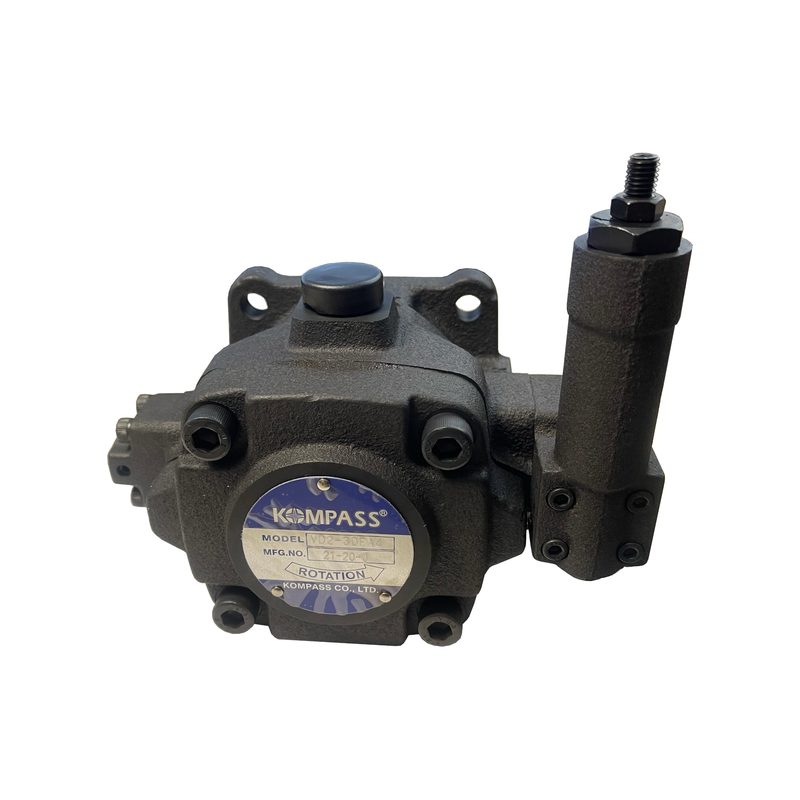

Kompass Variable Displacement Vane Pump - 1000-2000 PSI (VD2-30F-A4)
SKU KOVD230FA4
Original price
$636.43
-
Original price
$636.43
Original price
$636.43
$636.43
-
$636.43
Current price
$636.43
Availability:
in stock, ready to be shipped
VD2 series is a variable displacement vane pump. Low noise and minimal vibration derived from high efficiency design. Easy pressure and flow adjustment which results in high stability and fast acting times.
Features
- Displacement: 1.02 in.³ / rev.
- Pump Type: Variable Displacement Vane
- Pressure Adjustment Range: 1000-2000 PSI
-
Speed:
Minimum - 800 RPM
Max- 1800 RPM -
Flow: 7.93 GPM @ 1800 RPM Unloaded
- Rotation: Clockwise
- Shaft: 3/4" dia. w/ 3/16" key
-
Ports:
In - 3/4" BSPT
Out - 1/2" BSPT - Drain - 3/8" BSPT
- Mounting Flange: SAE "A" 2-Bolt
