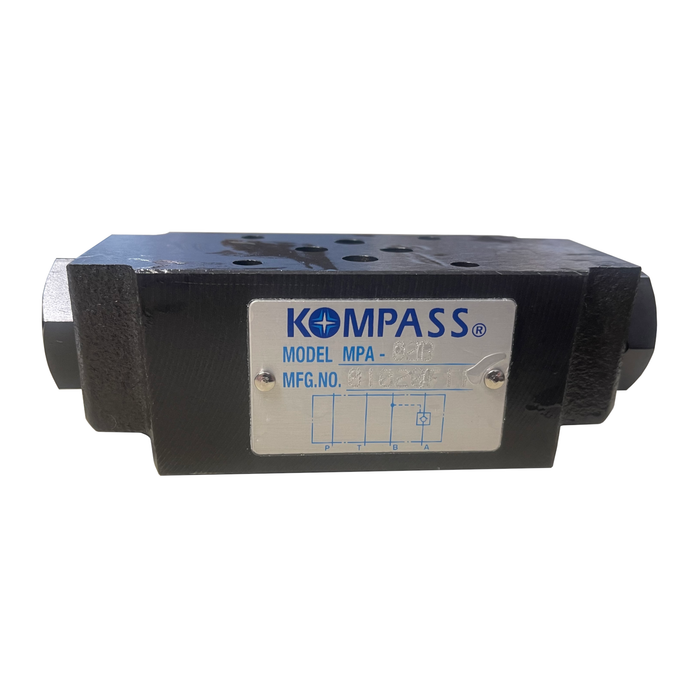

MPA-02B Pilot Operated Check Valve (D03, A Port Check)

MPA-02B Pilot Operated Check Valve (D03, A Port Check)

SKU KOMPA02B
$119.00 - $119.00
$119.00
$119.00 - $119.00
$119.00
Availability:
in stock, ready to be shipped
by Kompass Hydraulics
Request a quote

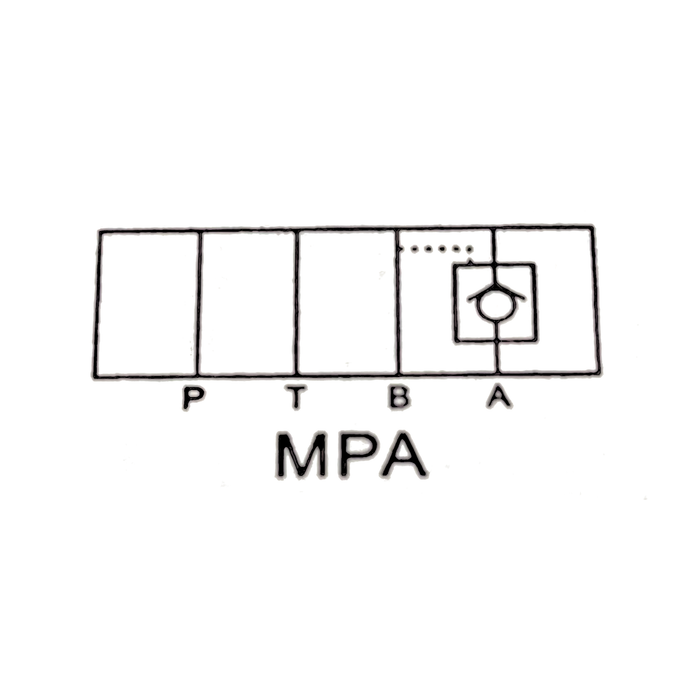

Kompass hydraulics D03 modular pilot operated check valve. Stops fluid flow in one direction and allows free flow of fluid in opposite direction. A Port checked. Pilot signal sensed from B Port to allow flow through A Port when sufficient pressure is achieved to lift ball off A Port seat. Cracking pressure set at 50 PSI.

FEATURES

  • Valve Size: D03
  • Valve Type: Modular Pilot Operated Check Valve
  • Action Port: A Port
  • Pilot Port: B Port
  • Max Pressure: 3625 PSI
  • Max Flow: 10.56 GPM
  • Cracking Pressure: 50 PSI
  • Mounting Type: Stackable



TECHNICAL DOCUMENTS

Product Data Sheet

How To Order
